What can the recess be filled with?

Block paving, tile or asphalt — the same material as the surrounding surface, so the access point reads as part of the finish rather than a plate set into it.

Does a recessed cover lose load capacity?

No. The published range runs to EN 124 D400, the carriageway class rated for a 40 tonne test load. The recess changes the finish, not the rating.

What depth of infill does it take?

The tray depth follows the cover. Send the paving or tile thickness with your enquiry and we will confirm the right model.

Where are recessed covers normally specified?

Plazas, malls, hotel forecourts and landscaped developments — anywhere an unbroken surface finish matters more than a visible access point.

Manhole Covers

Recessed Manhole Covers

Infill covers that take the surrounding paving, tile or asphalt, so the finished surface runs unbroken across the access point.

Recessed

Ductile iron, EN 124 B125 / D400

A recessed cover is a tray. It is filled on site with the same block paving, tile or asphalt used around it, so the access point reads as part of the surface rather than a plate set into it. Specified wherever the finish matters — plazas, malls, hotel forecourts and landscaped developments — without giving up load class.

Material: Ductile iron GGG50 (EN-GJS-500-7)
Standard: EN 124-2
Recess fill: Block paving, tile or asphalt to match the surrounding surface
Options: GRP sealing plate provision
Seating clearance: 4 mm on 450×450, 3 mm on 600×600

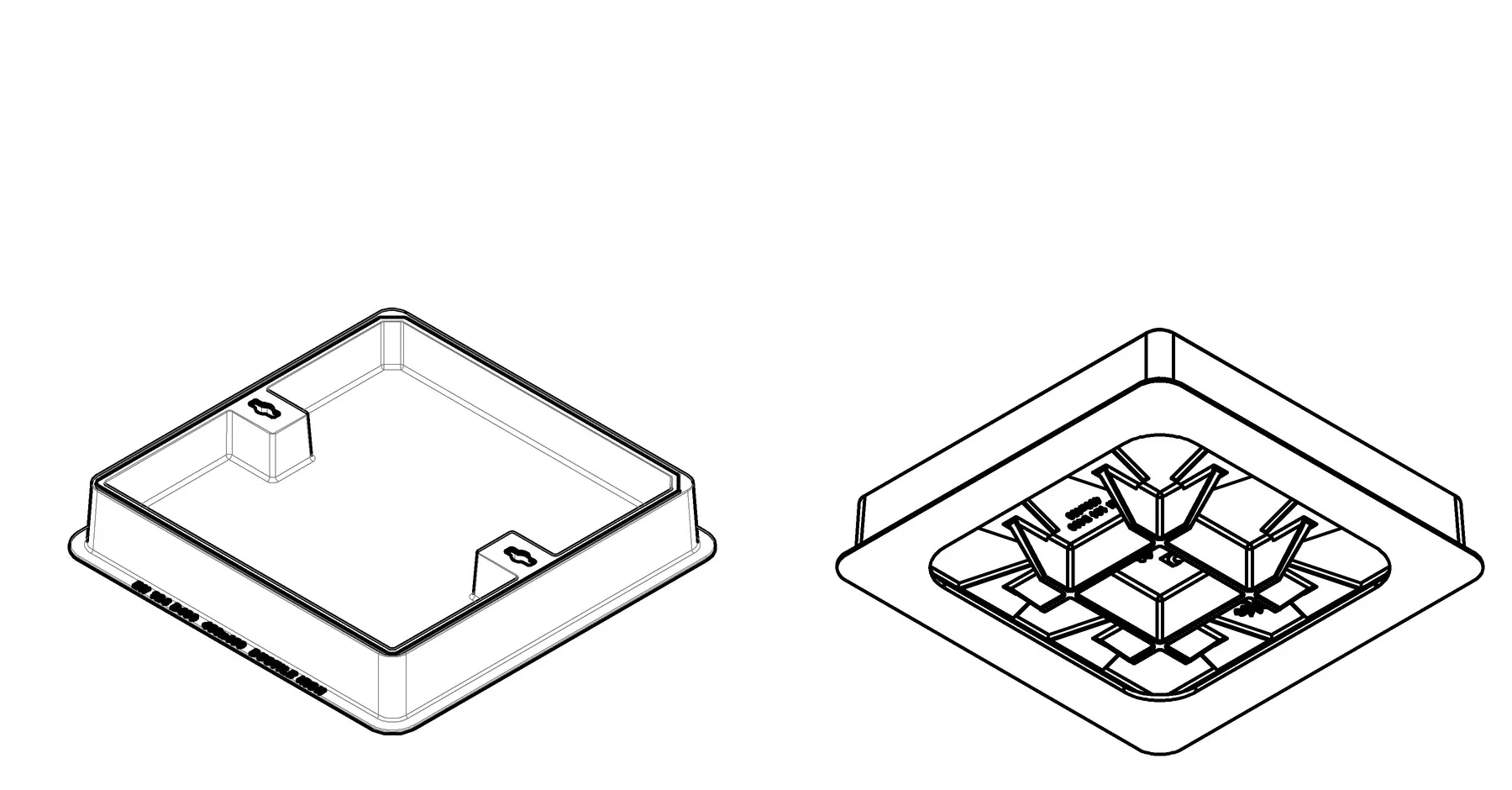

Isometric views of the recessed manhole cover frame and the cover underside — Dimensions are listed below; full drawings and DWG files are available on request.

Specifications

2 sizes, 2 load classes

Dimensions in millimetres. Sizes outside this range are produced to order.

Recessed Manhole Covers — GCC range, dimensions, load classes and weights
Reference	Clear opening(mm)	Frame outer(mm)	Frame depth(mm)	Load class(EN 124)	Weight(kg)

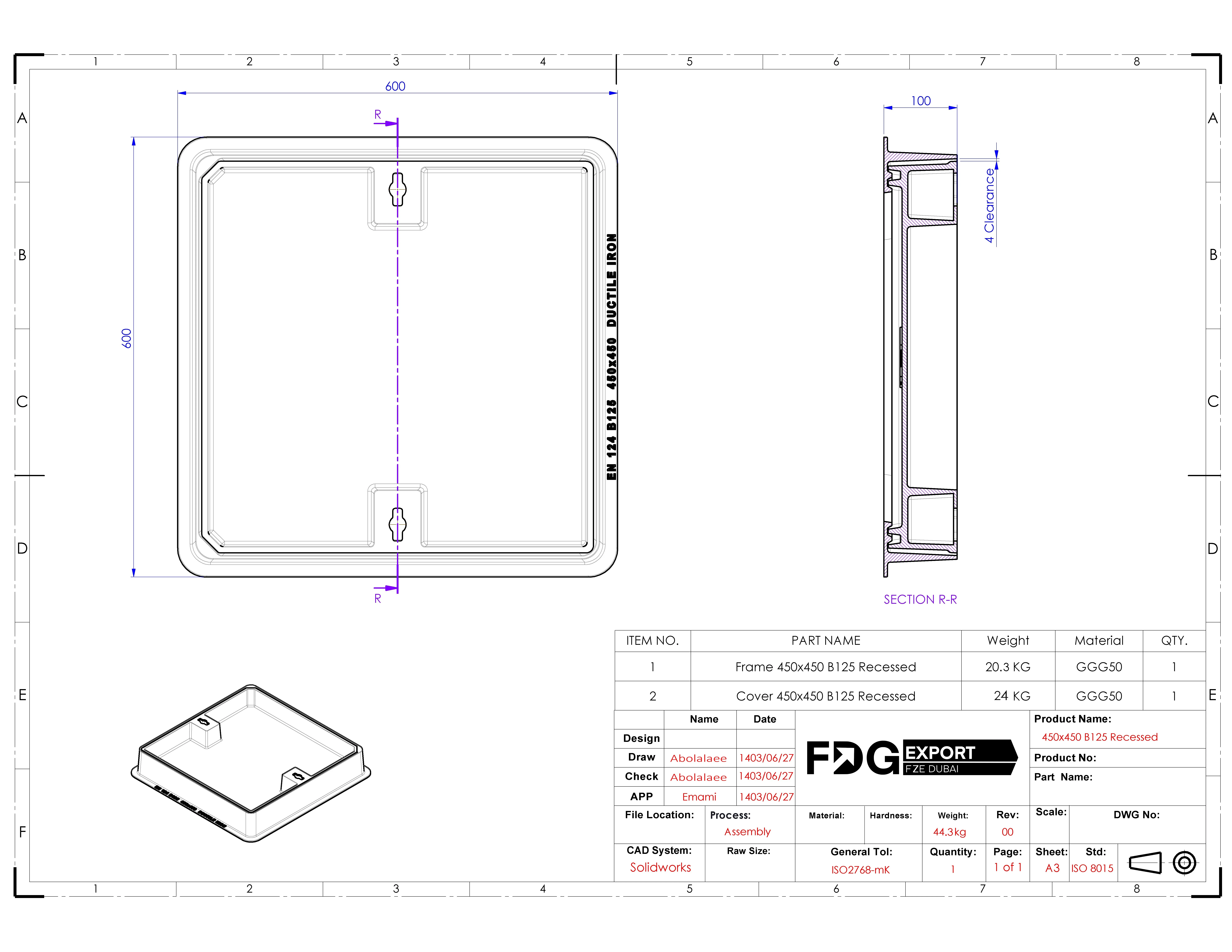

450×450 Recessed	450 × 450	600 × 600	100	B125	44.3

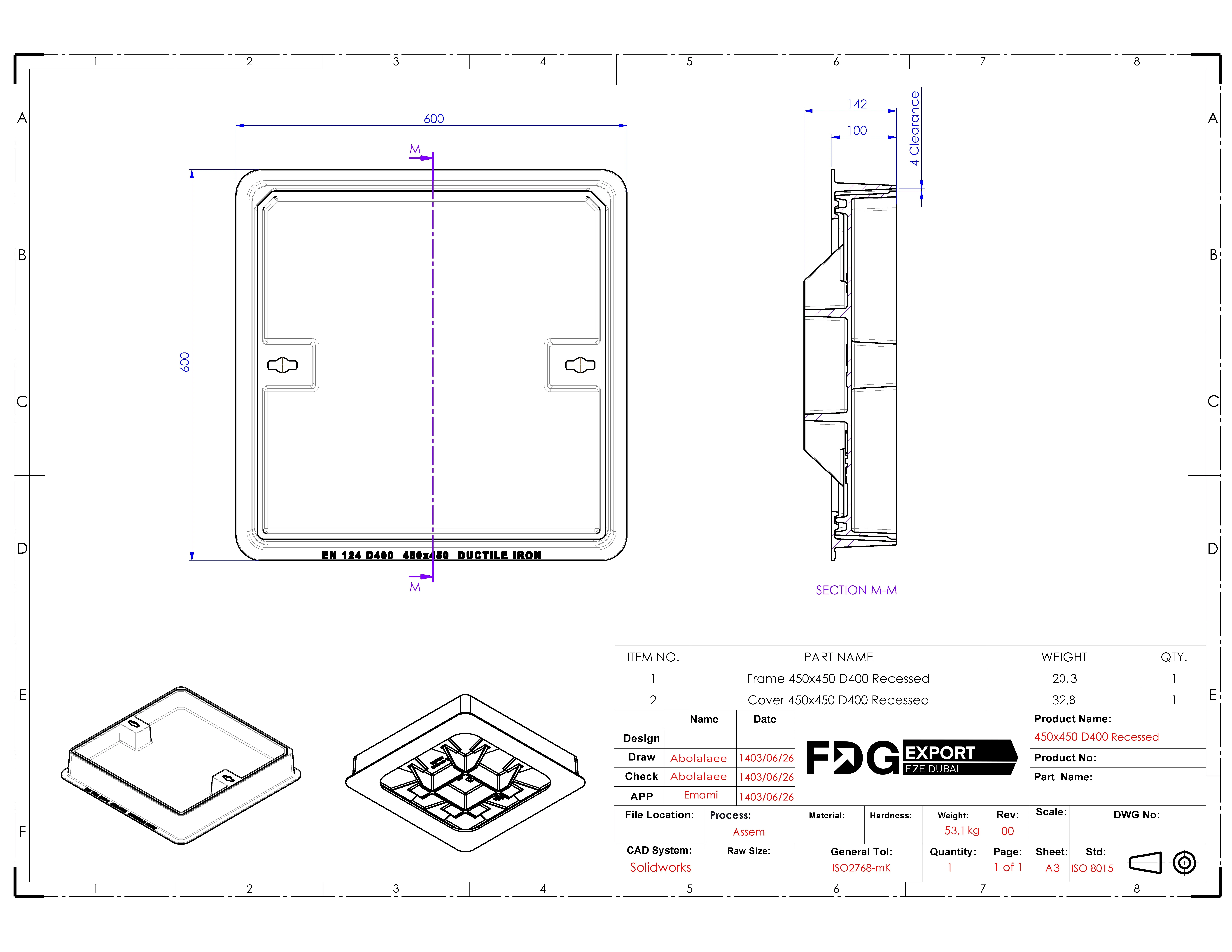

450×450 Recessed	450 × 450	600 × 600	100	D400	53.1

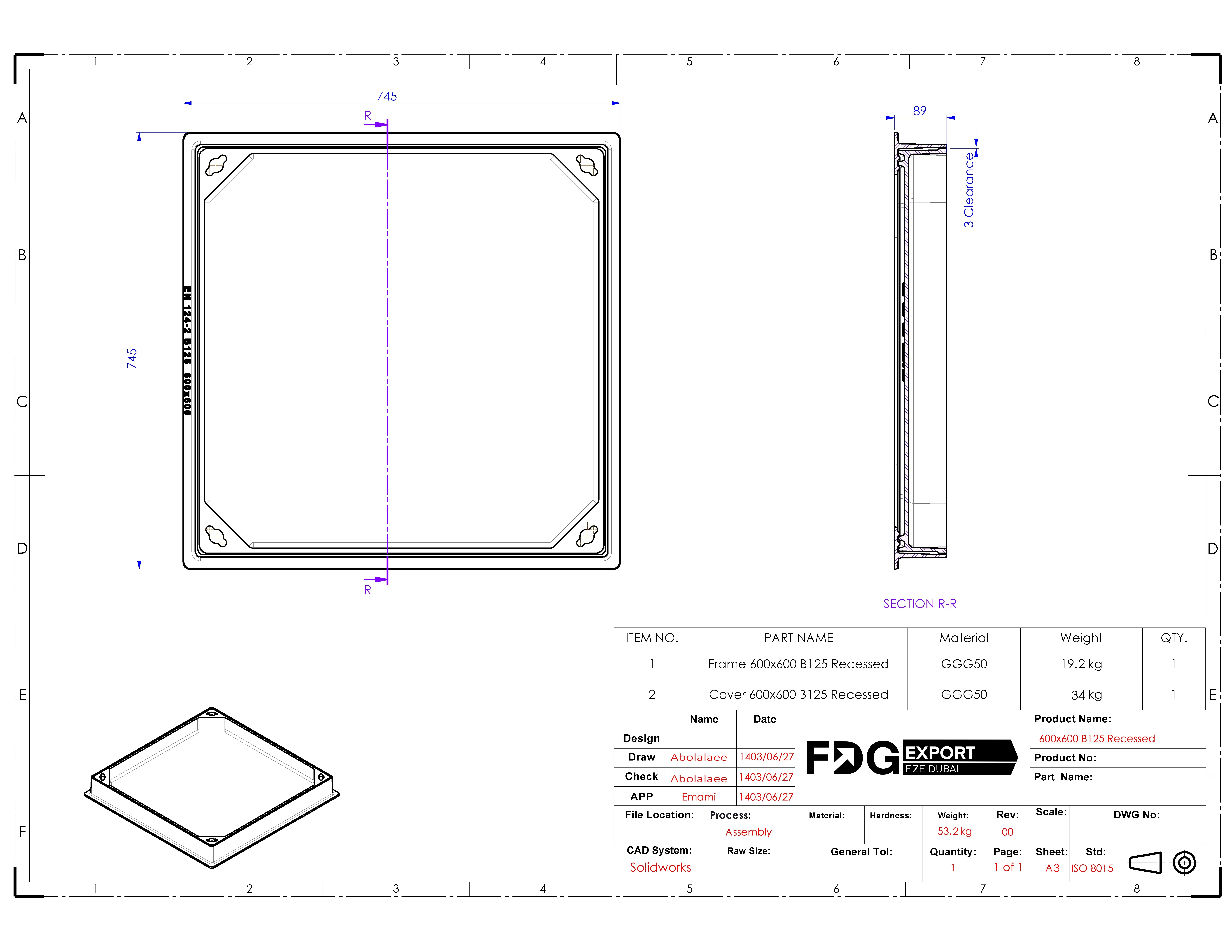

600×600 Recessed	600 × 600	745 × 745	89	B125	53.2

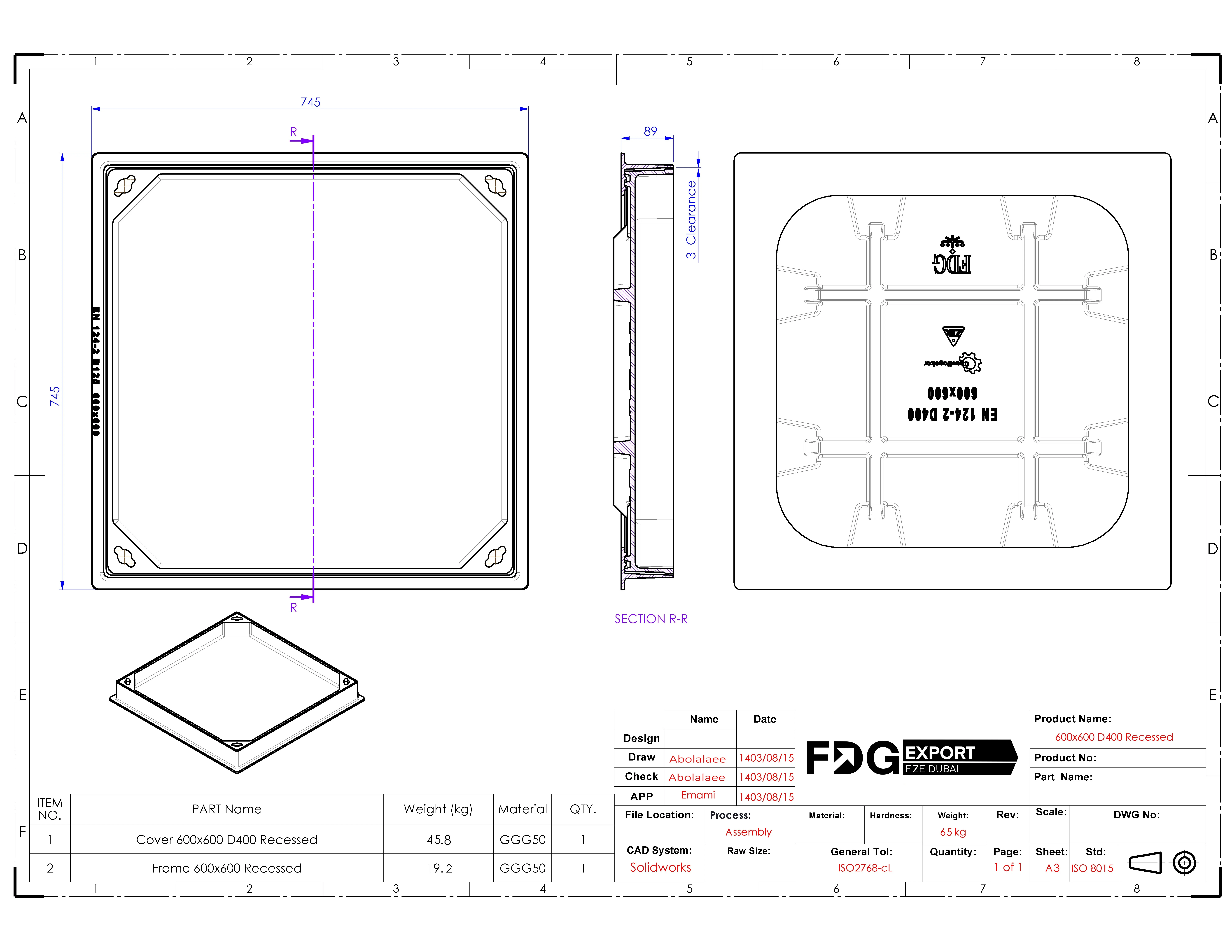

600×600 Recessed	600 × 600	745 × 745	89	D400	65

Common questions

Specifying manhole covers

What can the recess be filled with?: Block paving, tile or asphalt — the same material as the surrounding surface, so the access point reads as part of the finish rather than a plate set into it.
Does a recessed cover lose load capacity?: No. The published range runs to EN 124 D400, the carriageway class rated for a 40 tonne test load. The recess changes the finish, not the rating.
What depth of infill does it take?: The tray depth follows the cover. Send the paving or tile thickness with your enquiry and we will confirm the right model.
Where are recessed covers normally specified?: Plazas, malls, hotel forecourts and landscaped developments — anywhere an unbroken surface finish matters more than a visible access point.
