What load class do I need for a road?

EN 124 D400 is the carriageway class, rated for 40 tonnes test load, and covers roads and hard shoulders. B125 is 12.5 tonnes and suits footways, pedestrian areas and car parks with light traffic. If covers sit anywhere vehicles run, specify D400.

Why two triangular covers instead of one?

Each half is light enough to lift by hand rather than needing lifting keys and two people. The diagonal joint is self-centring on reseating, and it stays clamped under traffic instead of rocking.

What is GRP provision?

A recess cast into the cover to take a glass-reinforced plastic sealing plate, used where the chamber below must be sealed against odour or water ingress.

Can you supply sizes other than those listed?

Yes. The published sizes are the standard range; other clear openings are produced to order.

Manhole Covers

Double Triangular Manhole Covers

Two triangular covers in a single frame, with GRP provision. The standard sealed-access solution on GCC utility and sewerage networks.

Double Triangular

Ductile iron, EN 124 B125 / D400

A double triangular cover seats two triangular castings against a diagonal bearing bar. Each half is light enough to lift by hand, the seating is self-centring, and the diagonal joint stays clamped under traffic rather than rocking. Supplied with GRP provision where a sealing plate is required.

Material: Ductile iron GGG50 (EN-GJS-500-7)
Standard: EN 124-2
Seating clearance: 4 mm on 300×300, 3 mm on 600×600
Fixings: 2 × M12 × 60 bolts with nuts and washers
Options: GRP sealing plate provision

Exploded view of the 300x300 D400 double triangular manhole cover, frame and fixings — Dimensions are listed below; full drawings and DWG files are available on request.

Specifications

2 sizes, 2 load classes

Dimensions in millimetres. Sizes outside this range are produced to order.

Double Triangular Manhole Covers — GCC range, dimensions, load classes and weights
Reference	Clear opening(mm)	Frame outer(mm)	Frame depth(mm)	Load class(EN 124)	Weight(kg)

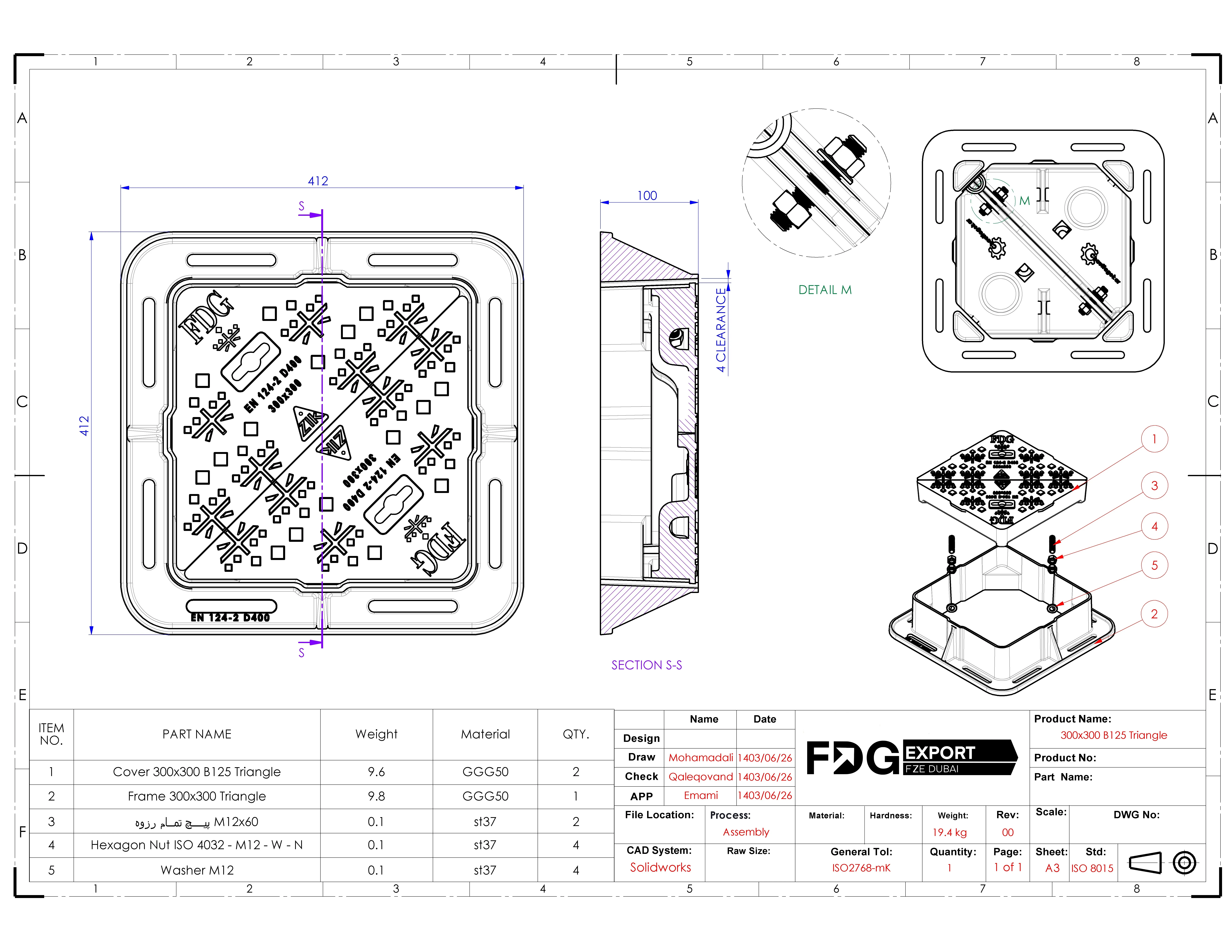

300×300 Double Triangle	300 × 300	412 × 412	100	B125	19.4

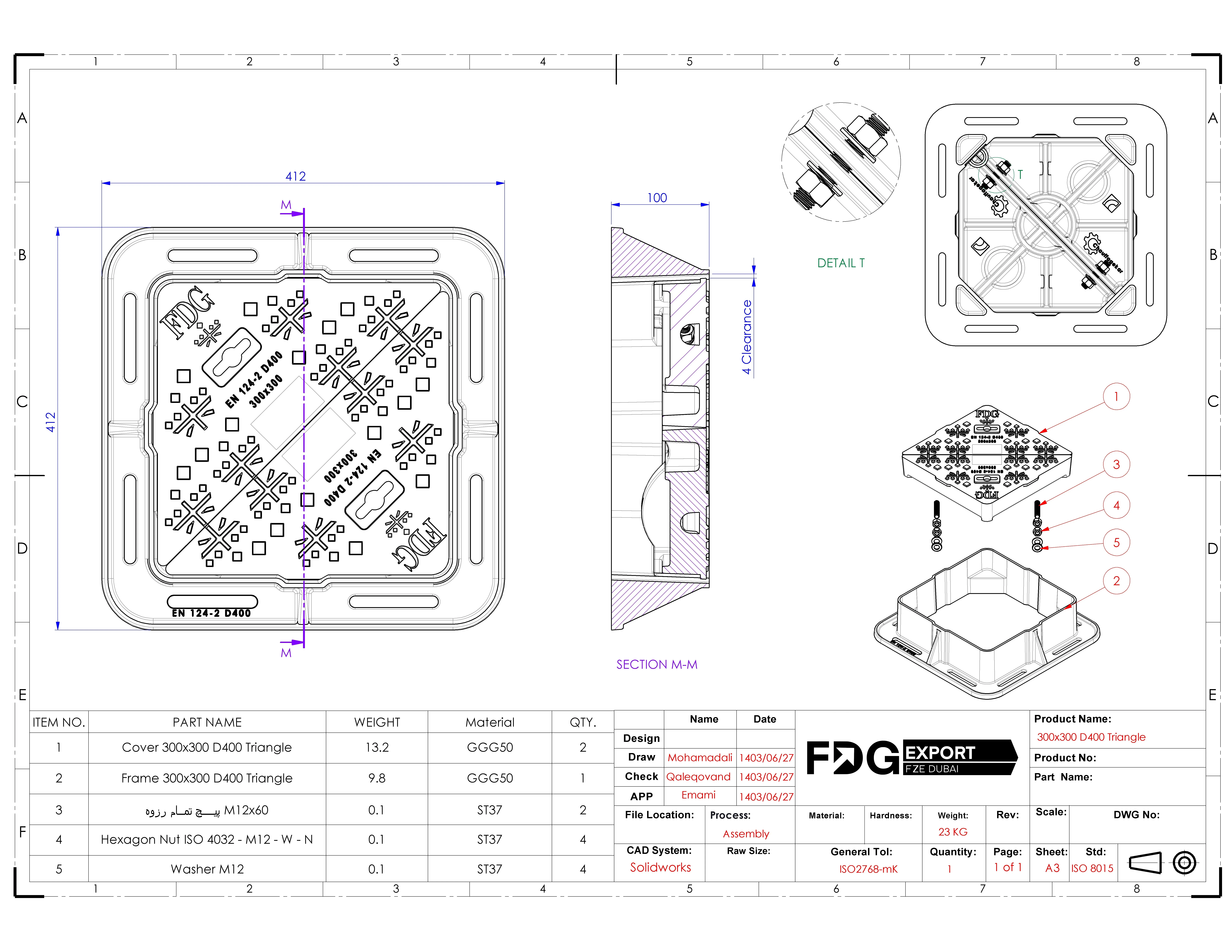

300×300 Double Triangle	300 × 300	412 × 412	100	D400	23

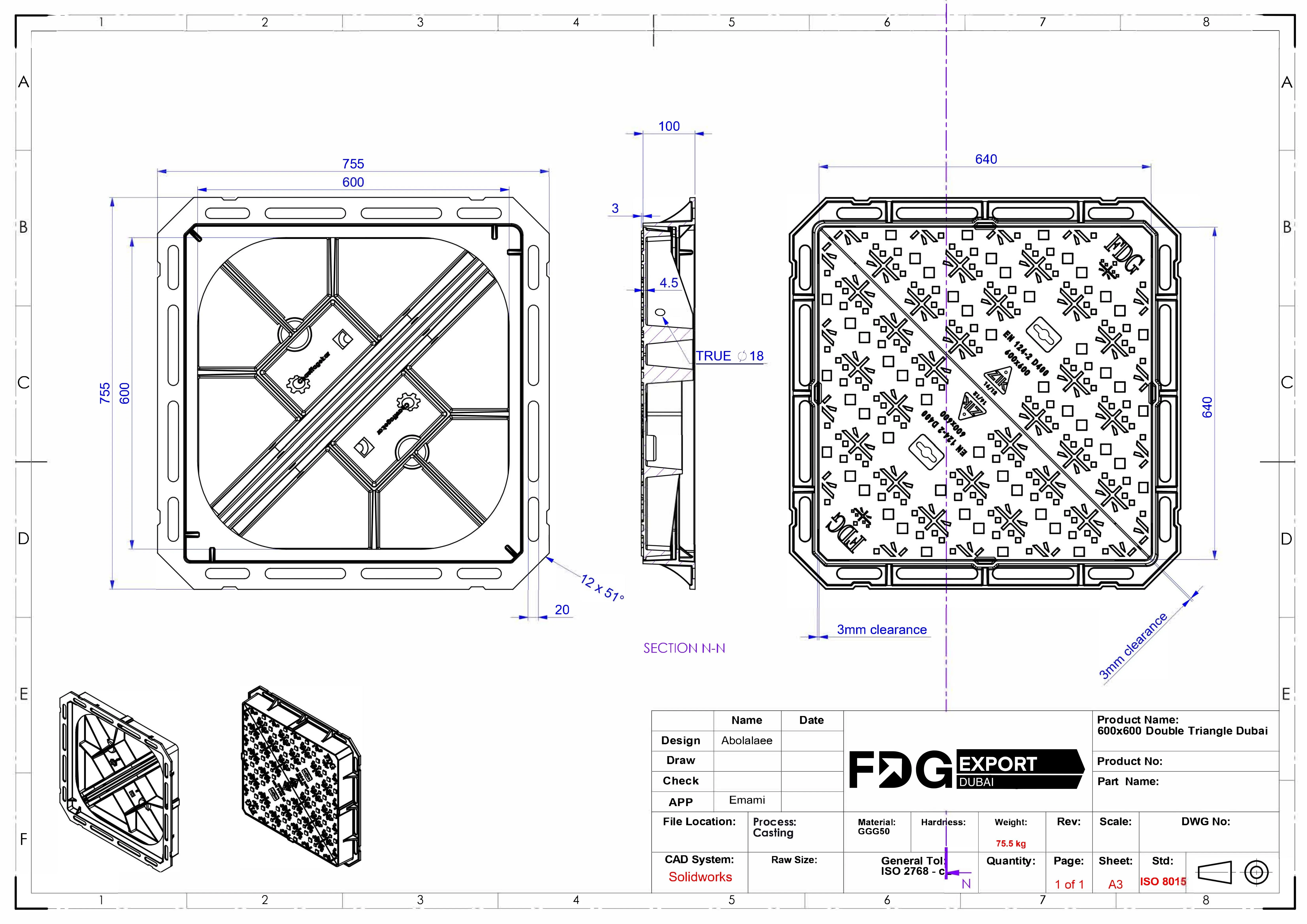

600×600 Double Triangle	600 × 600	755 × 755	100	D400	75.5

Common questions

Specifying manhole covers

What load class do I need for a road?: EN 124 D400 is the carriageway class, rated for 40 tonnes test load, and covers roads and hard shoulders. B125 is 12.5 tonnes and suits footways, pedestrian areas and car parks with light traffic. If covers sit anywhere vehicles run, specify D400.
Why two triangular covers instead of one?: Each half is light enough to lift by hand rather than needing lifting keys and two people. The diagonal joint is self-centring on reseating, and it stays clamped under traffic instead of rocking.
What is GRP provision?: A recess cast into the cover to take a glass-reinforced plastic sealing plate, used where the chamber below must be sealed against odour or water ingress.
Can you supply sizes other than those listed?: Yes. The published sizes are the standard range; other clear openings are produced to order.
