Channel Gratings
Reinforced slotted gratings for linear drainage runs, in three widths, all EN 124-2 D400.
Channel Gratings
Ductile iron, EN 124 D400
The grating is the part of a channel run that takes the load and passes the water. These are the reinforced castings — additional and heavier ribs beneath the bearing surface — supplied in three widths to suit the channel width specified. Laid end to end at 750 mm per unit.
- Material
- Ductile iron EN-GJS-500
- Standard
- EN 124-2 D400, cast into the face
- Slot
- 20 mm wide at 30 mm pitch
- Length
- 750 mm per unit, laid end to end
- Construction
- Reinforced — additional and heavier ribs beneath the bearing surface
- Tolerance
- ISO 2768-cL
Specifications
3 sizes, 1 load class
Dimensions in millimetres. Sizes outside this range are produced to order.
| Reference | Nominal size(mm) | Clear waterway(mm) | Load class(EN 124) | Weight(kg) | Drawing |
|---|---|---|---|---|---|
| 750 × 200 Reinforced | 750 × 200 | 140.5 | D400 | 16 |  Preview only — contact us for the full drawing or DWG |

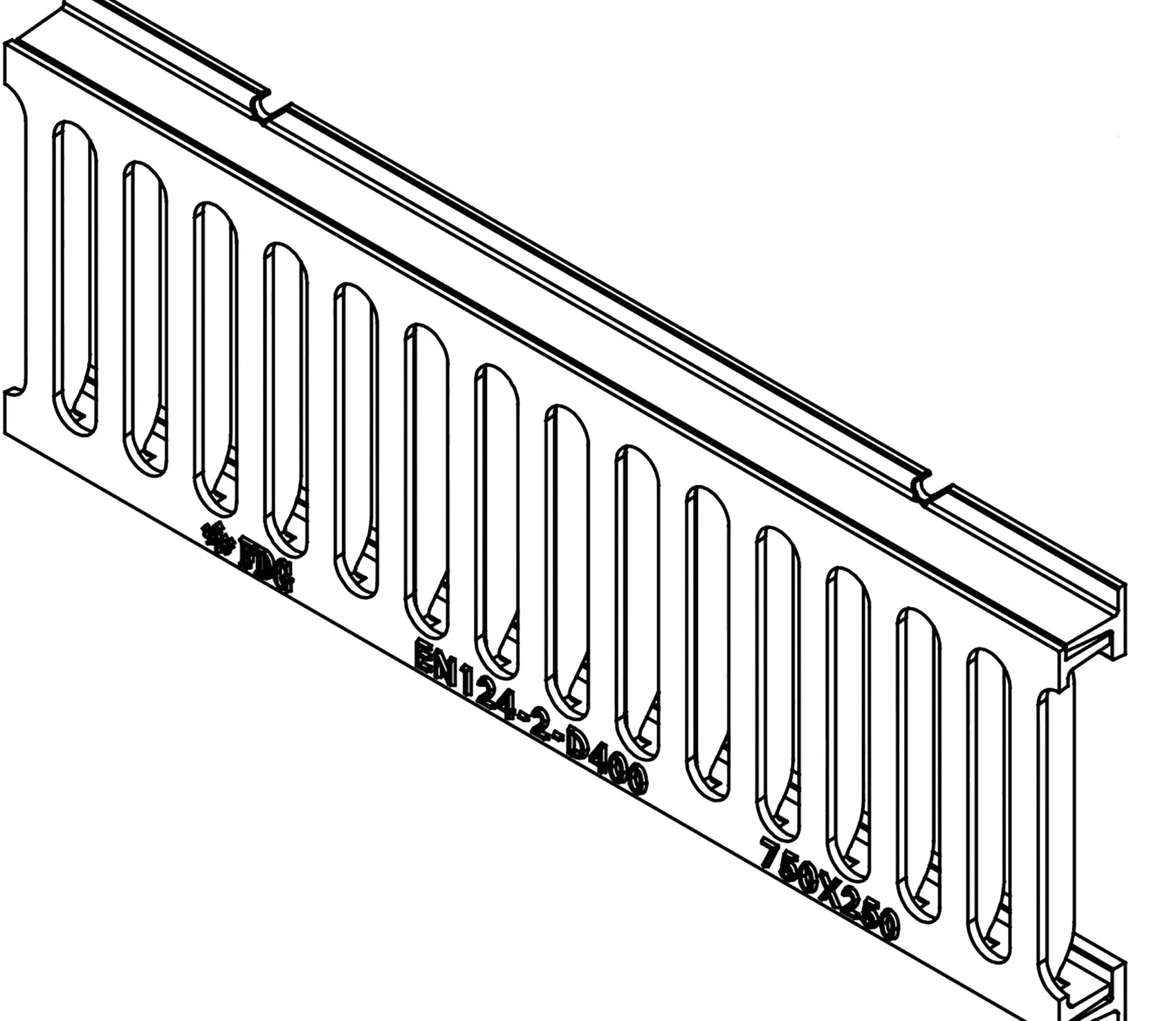

| 750 × 250 Reinforced | 750 × 250 | 190 | D400 | 21.5 |  Preview only — contact us for the full drawing or DWG |
| 750 × 300 Reinforced | 750 × 300 | 240 | D400 | 23.5 |  Preview only — contact us for the full drawing or DWG |
Common questions
Specifying channel drains
- How do I choose the width?
- By the flow the run has to carry and the channel it seats in. The three widths give clear waterways of 140.5, 190 and 240 mm — that figure, not the nominal size, is what governs capacity.
- What does reinforced mean?
- Additional and heavier ribs beneath the bearing surface. Only the reinforced castings are supplied.
- What load class are they?
- EN 124 D400 throughout, the carriageway class rated for a 40 tonne test load, cast into the face of every unit.
- How long is each unit?
- 750 mm, laid end to end along the run.
